PHP Highcharts Column Chart Example

PHP Highcharts Column Chart Example

PHP Highcharts Column Chart Example

Hi Dev,

In this blog,I will learn you how to implement simple dynamic column highcharts utilizing php mysql database.We will show example of php highcharts column chart.Highcharts is a one type js library, that provide to populate bar chart, line chart, area chart, column chart etc. Highcharts library additionally provide several theme and graphic design that way you can make better layout. Highcharts is a very popular and simple library for php developer.

Here, I will give you full example for simply exhibit highcharts column chart utilizing php as bellow.

Step 1: Create Database

In first step we require to create new database "phpexample", Or you can rename as you like. After creating successfully database, In this example we will show compare column chart of viewer and clicks, So we require to create tables. we require following two tables.

1)test_viewer

2)test_click

In this step two table by following mysql query as like bellow example.

Create test_viewer table
CREATE TABLE IF NOT EXISTS `test_viewer` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `numberofview` int(11) NOT NULL,
  `created_at` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB  DEFAULT CHARSET=latin1 AUTO_INCREMENT=10 ;
Create test_click table:
CREATE TABLE IF NOT EXISTS `test_click` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `numberofclick` int(12) NOT NULL,
  `created_at` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB  DEFAULT CHARSET=latin1 AUTO_INCREMENT=10 ;

Now we require to some dummy data with different year, So you can add like added bellow screen shot, I added both tables with some dummy records that way you can simply add in yout database for testing.

test_viewer table
PHP Highcharts Column Chart Example

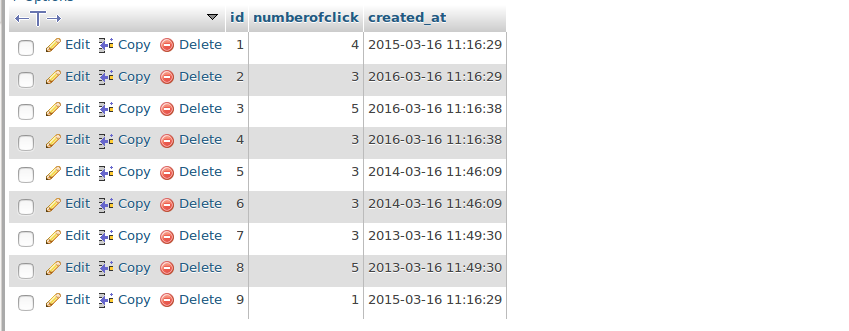

test_click table:
PHP Highcharts Column Chart Example
Step 2: Create Database Configuration File

Now this step, I need to create on mysql database configuration file. In this file we will add details of phpmyadmin username, password and database name, So let's create new file "db_config.php" and put bellow code.

<?php
    $dbHost = "localhost";
    $dbDatabase = "phpexample";
    $dbUser = "root";
    $dbPasswrod = "root";

    $mysqli = mysqli_connect($dbHost, $dbUser, $dbPasswrod, $dbDatabase);
?>
Step 3: Create index.php File

Here this last step, we have to just create index.php file in root folder. In this file i write code of getting data from mysql database and convert into json data. So let's create new file "index.php" and put bellow code.

<?php
    require('db_config.php');

    /* Getting test_viewer table data */
    $sql = "SELECT SUM(numberofview) as count FROM test_viewer
            GROUP BY YEAR(created_at) ORDER BY created_at";
    $viewer = mysqli_query($mysqli,$sql);
    $viewer = mysqli_fetch_all($viewer,MYSQLI_ASSOC);
    $viewer = json_encode(array_column($viewer, 'count'),JSON_NUMERIC_CHECK);

    /* Getting test_click table data */
    $sql = "SELECT SUM(numberofclick) as count FROM test_click
            GROUP BY YEAR(created_at) ORDER BY created_at";
    $click = mysqli_query($mysqli,$sql);
    $click = mysqli_fetch_all($click,MYSQLI_ASSOC);
    $click = json_encode(array_column($click, 'count'),JSON_NUMERIC_CHECK);

?>
<!DOCTYPE html>
<html>
<head>
    <title>HighChart</title>
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css">
    <script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/jquery/3.1.1/jquery.js"></script>
    <script src="https://code.highcharts.com/highcharts.js"></script>
</head>
<body>
<script type="text/javascript">
$(function () {
    var data_click = <?php echo $click; ?>;
    var data_viewer = <?php echo $viewer; ?>;
    $('#container').highcharts({
        chart: {
            type: 'column'
        },
        title: {
            text: 'Yearly Website Ratio'
        },
        xAxis: {
            categories: ['2013','2014','2015', '2016']
        },
        yAxis: {
            title: {
                text: 'Rate'
            }
        },
        series: [{
            name: 'Click',
            data: data_click
        }, {
            name: 'View',
            data: data_viewer
        }]
    });
});
</script>
<div class="container">
    <br/>
    <h2 class="text-center">Highcharts php mysql json example</h2>
    <div class="row">
        <div class="col-md-10 col-md-offset-1">
            <div class="panel panel-default">
                <div class="panel-heading">Dashboard</div>
                <div class="panel-body">
                    <div id="container"></div>
                </div>
            </div>
        </div>
    </div>
</div>
</body>
</html>
now we are ready to run this example, so just run bellow command on root folder for run your project.
php -S localhost:8000
Now you can open bellow url on your browser:
http://localhost:8000

It will help you....

by at No comments:
Tags , , , ,

Laravel 8 Toastr Notifications using yoeunes/toastr package Tutorial

Laravel 8 Toastr Notifications using yoeunes/toastr package Tutorial

Laravel 8 Toastr Notifications using yoeunes/toastr package Example

Hi Guys

Today, I will learn with you how to install and use toastr notifications using yoeunes/toastr package in laravel application.we will use yoeunes/toastr package.we will write step be step tutorial for laravel toastr notifications.

Toastr notifications yoeunes/toastr package provides warning,success,error and info notifications.You have to just follow few step for implement toastr notifications in your laravel application. In this example i give you example from scratch. So just follow bellow step.

Step 1: Install yoeunes/toastr package

We need to install yoeunes/toastr composer package for datatable, so you can install using following command:

composer require yoeunes/toastr

After that you need to set providers and alias.

config/app.php
'providers' => [
    ...
    Yoeunes\Toastr\ToastrServiceProvider::class
    ...
];

As optional if you want to modify the default configuration, you can publish the configuration file:

php artisan vendor:publish --provider='Yoeunes\Toastr\ToastrServiceProvider' Step 2: Create Route

In this is step we need to create route for datatables layout file and another one for getting data. so open your routes/web.php file and add following route.

routes/web.php
<?php
use App\Http\Controllers\HomeController;
/*
|--------------------------------------------------------------------------
| Web Routes
|--------------------------------------------------------------------------
|
| Here is where you can register web routes for your application. These
| routes are loaded by the RouteServiceProvider within a group which
| contains the "web" middleware group. Now create something great!
|
*/
Route::get('home',[HomeController::class,'index'])->name('home');
Step 5: Create Controller

In this step, now we should create new controller as HomeController. this controller will manage layout and getting data request and return response, so put bellow content in controller file:

app/Http/Controllers/HomeController.php Success Toastr Notifications For Controller Code
<?php

namespace App\Http\Controllers;

use Illuminate\Http\Request;

class HomeController extends Controller
{
    /**
     * Create a new controller instance.
     *
     * @return void
     */
    public function index()
    {
        toastr()->success('Success Message');
        return view('home');
    }
}
Error Toastr Notifications For Controller Code
<?php

namespace App\Http\Controllers;

use Illuminate\Http\Request;

class HomeController extends Controller
{
    /**
     * Create a new controller instance.
     *
     * @return void
     */
    public function index()
    {
        toastr()->error('Error Message');
        return view('home');
    }
}
Info Toastr Notifications For Controller Code
<?php

namespace App\Http\Controllers;

use Illuminate\Http\Request;

class HomeController extends Controller
{
    /**
     * Create a new controller instance.
     *
     * @return void
     */
    public function index()
    {
        toastr()->info('Info Message');
        return view('home');
    }
}
Warning Toastr Notifications For Controller Code
<?php

namespace App\Http\Controllers;

use Illuminate\Http\Request;

class HomeController extends Controller
{
    /**
     * Create a new controller instance.
     *
     * @return void
     */
    public function index()
    {
        toastr()->warning('Warning Message');
        return view('home');
    }
}
Step 3: Create View

In Last step, let's create users.blade.php(resources/views/home.blade.php) for layout and we will write design code here and put following code:

resources/views/home.blade.php
<!DOCTYPE html>
<html>
<head>
   <title>Laravel Toastr Notifications using yoeunes/toastr package</title>
   <link rel="stylesheet" type="text/css" href="https://cdnjs.cloudflare.com/ajax/libs/twitter-bootstrap/4.4.1/css/bootstrap.css">
   @toastr_css
</head>
<body>
<div class="container">
    <div class="row">
        <div class="col-md-6 offset-md-3 mt-5">
            <div class="card">
                <div class="card-header text-center ">
                    Laravel Toastr Notifications using yoeunes/toastr package  - nicesnippets.com
                </div>
                <div class="card-body text-center p-5">
                    Check For Toastr Notification
                </div>
            </div>
        </div>
    </div>
</div>
</body>
@jquery
@toastr_js
@toastr_render
</html>

Now, we are ready to check, so let's check...

It will help you...
